Bell Housing Plate

Reply




Thread Tools Search this Thread
Old 12-08-2012, 05:13 PM   #1
Newbie

lifesabeach's Avatar

Join Date: Dec 2012
Location: Moyock NC
Posts: 3

View lifesabeach's Photo Album My Photos
2000 Cherokee
Arrow Bell Housing Plate

This is my first post on the forum and am not certain I am in the right area, if not sorry about that and please redirect me. Meanwhile here goes.

First off, I just recently bought a 2000 XJ sport, and I had been waiting for this day for a long time. I have to say I love it and its everything I expected it to be and more.

That being said I was in the process of undercoating when I found something that didn't look quite right. I attached pictures to help explain of course.

So 4 hours and one $15 trip to the junk yard later the problem is solved. My only concern now is if I should be using a gasket here? I am hoping someone would be familiar with whether or not I should. Any help is much appreciated.
Attached Thumbnails

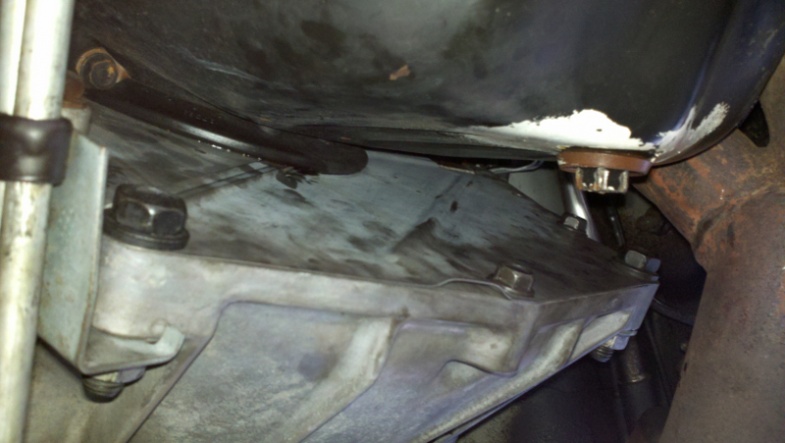

Bell Housing Plate-no_cover-1.jpg   Bell Housing Plate-parts_n_tools-2.jpg   Bell Housing Plate-plate-3.jpg   Bell Housing Plate-finished-4.jpg
lifesabeach is offline   Reply With Quote
Join Cherokee Forum

Join CherokeeForum.com Today - It's Totally Free!

Do you love your Jeep? If so we invite you to join our community and see what it has to offer. Our site is specifically designed for you and it's a great place for Jeep Fans to meet online.
Once you join you'll be able to post messages, upload pictures of your jeep, and have a great time with other Jeep Cherokee fans.. Whether your an old timer or just bought your Jeep you'll find that CherokeeForum.com is a great community to join. Best of all it's totally free!

Join CherokeeForum.com Today! - Click Here JOIN FOR FREE


-->
Old 12-08-2012, 05:40 PM   #2
CF Veteran

5-90's Avatar

Join Date: May 2008
Posts: 2,996

View 5-90's Photo Album My Photos
1988 Cherokee
Default

Nope. That's just an inspection cover, and not a fluid seal.

Besides, see how there's that notch at the bottom? That's there to allow oil out, so you can see if there's a leak at the input seal or rear main seal. Seal that plate, and you can get a leak and end up with an oil batch that will wreck your clutch.
__________________
Kelley's Works in Progress - www.kelleyswip.com
KWiP Parts Exchange - www.kelleyswip.com/exchange.html

"It's in the shop, being readied for the next failure."
5-90 is offline   Reply With Quote
Old 12-08-2012, 07:16 PM   #3
CF Veteran

freegdr's Avatar

Join Date: Mar 2010
Location: Happyville...
Posts: 32,990

View freegdr's Photo Album My Photos
1989 xj sport 2dr Cherokee
Default

what kinda oil pan plugs that ?
__________________
Its all in your altitude,horn broke watch for finger
When asking for help here and not listening to test procedures, why ask?
freegdr is offline   Reply With Quote
Old 12-08-2012, 10:23 PM   #4
CF Veteran

EVILXJ's Avatar

Join Date: Mar 2011
Location: South Bend, IN
Posts: 1,207

View EVILXJ's Photo Album My Photos
1995 Cherokee
Default

Quote:
Originally Posted by freegdr View Post
what kinda oil pan plugs that ?
whoa thats a thick seal!
__________________
Black XJ Club

My best friend is a Pitbull

'95 XJ stroked!
'92 XJ
'87 MJ
'99 XJ stock...for now

Fuel Injector Upgrades.....PM Me!


======> http://www.mycarfling.com/
EVILXJ is offline   Reply With Quote
Old 12-08-2012, 10:46 PM   #5
Newbie

lifesabeach's Avatar

Join Date: Dec 2012
Location: Moyock NC
Posts: 3

View lifesabeach's Photo Album My Photos
2000 Cherokee
Talking

Quote:
Originally Posted by 5-90 View Post
Nope. That's just an inspection cover, and not a fluid seal.

Besides, see how there's that notch at the bottom? That's there to allow oil out, so you can see if there's a leak at the input seal or rear main seal. Seal that plate, and you can get a leak and end up with an oil batch that will wreck your clutch.
Thanks for clearing that up 5-90! I do and did see the gap and didn't really see any evidence of a gasket when I pulled the part at the yard or on the plate. I figured it wouldn't hurt to ask, just in case.

I am glad I saw that the plate was missing, I assume it wouldn't be good to get sand or mud in there. The only reason I saw it was because I wanted to undercoat before I get out on the beach.

lifesabeach is offline   Reply With Quote
Old 12-08-2012, 10:54 PM   #6
Newbie

lifesabeach's Avatar

Join Date: Dec 2012
Location: Moyock NC
Posts: 3

View lifesabeach's Photo Album My Photos
2000 Cherokee
Talking

Quote:
Originally Posted by freegdr View Post
what kinda oil pan plugs that ?
Not really sure, just got the jeep 3 weeks ago and haven't paid much attention other than noticing it was looking gnarled up.

Quote:
Originally Posted by EVILXJ View Post
whoa thats a thick seal!
It is a bit meaty now that you mention it.
lifesabeach is offline   Reply With Quote
Old 12-08-2012, 11:00 PM   #7
Audiology Intern

Turbo X_J's Avatar

Join Date: Sep 2009
Location: ☼ Blackhole Sun
Posts: 5,158

View Turbo X_J's Photo Album My Photos
2001 Cherokee
Default

Quote:
Originally Posted by EVILXJ View Post
whoa thats a thick seal!
It's factory, there is a nylonish gasket molded to the drain plug.
Click the image to open in full size.
__________________
♪♫♪♪♫
Pearl
I hit the drum, you shake the booty

"Everything you can imagine is real" Pablo Picasso
Psalm 150:3-6
It's OK to take it out and play with it.

" So what's so good about love when it hurts you this way... "
Vixen - "Love Made Me"<<<Klickable
RIP Jan, my Glam Metal Goddess
Cancer sucks

Last edited by Turbo X_J; 12-08-2012 at 11:04 PM.
Turbo X_J is offline   Reply With Quote
Old 12-09-2012, 12:22 AM   #8
Herp Derp Jerp

salad's Avatar

Join Date: Nov 2011
Location: Parham, ON
Posts: 14,790

View salad's Photo Album My Photos
1999 Cherokee
Send a message via MSN to salad
Default

Quote:
Originally Posted by Turbo X_J View Post
It's factory, there is a nylonish gasket molded to the drain plug.
Click the image to open in full size.
Same on my 1999. Super handy, no leaks, no crush washer nonsense.
__________________
But our trip was different. It was to be a classic affirmation of everything right and true in the national character. A gross physical salute to the fantastic possibilities of life in this country. But only for those with true grit.

And we are chock full of that, man!

A little writeup on engine oil for your Jeep

Quote:
Originally Posted by NewKindOfClown
in between Cherokees at the moment
salad is offline   Reply With Quote
Old 12-09-2012, 09:59 AM   #9
CF Veteran

5-90's Avatar

Join Date: May 2008
Posts: 2,996

View 5-90's Photo Album My Photos
1988 Cherokee
Default

Quote:
Originally Posted by lifesabeach View Post
Thanks for clearing that up 5-90! I do and did see the gap and didn't really see any evidence of a gasket when I pulled the part at the yard or on the plate. I figured it wouldn't hurt to ask, just in case.

I am glad I saw that the plate was missing, I assume it wouldn't be good to get sand or mud in there. The only reason I saw it was because I wanted to undercoat before I get out on the beach.

As long as it comes back out, it's not a big problem. I need to figure out where my inspection cover went...

Nice having the moulded seal on the plug, but it will eventually wear out. I just automatically wipe the threads clean and put RTV black on the plug before it goes back in - not only does that seal the threads, but it also helps keep the plug from seizing (if you've ever had THAT happen, you know it's something to be avoided!)
__________________
Kelley's Works in Progress - www.kelleyswip.com
KWiP Parts Exchange - www.kelleyswip.com/exchange.html

"It's in the shop, being readied for the next failure."
5-90 is offline   Reply With Quote
