Anyone know what this is?
#1
Member
Thread Starter
Join Date: Apr 2013
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Anyone know what this is?

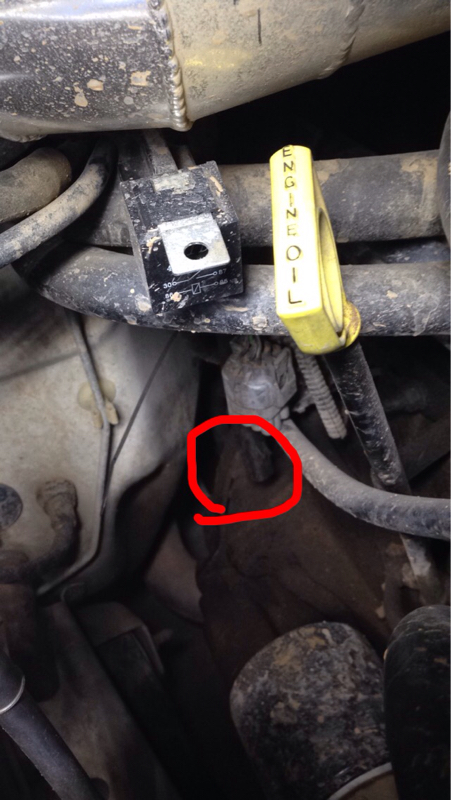

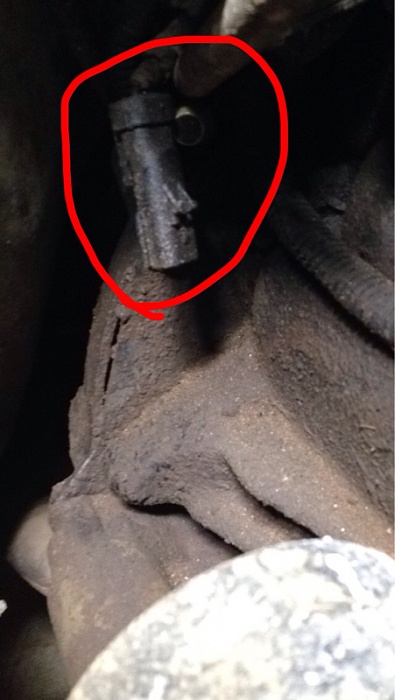

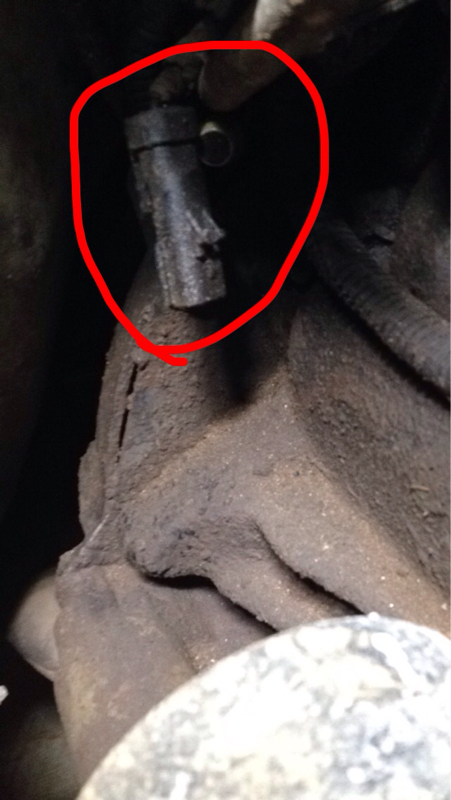

My jeep won't start, it's not getting spark for some reason, and it isn't the cps. Anyways, I found this plug dangling in the engine bay, could this be the source of my problems? It's located near the firewall where the transmission connectors connect to the engine harness. Thanks!
#4
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
#6
CF Veteran
Join Date: Aug 2010
Location: Canton, MI
Posts: 8,357
Likes: 0
Received 82 Likes
on
67 Posts
Year: 1999
Model: Cherokee
Engine: 4.0
What year is this XJ?
How many wires going to the connector?
What color(s) are the wire(s)?
Edit: Looks like a few mods have been done. That relay hanging there for instance. Maybe that connector went to a mod.
How many wires going to the connector?
What color(s) are the wire(s)?
Edit: Looks like a few mods have been done. That relay hanging there for instance. Maybe that connector went to a mod.
My jeep won't start, it's not getting spark for some reason, and it isn't the cps. Anyways, I found this plug dangling in the engine bay, could this be the source of my problems? It's located near the firewall where the transmission connectors connect to the engine harness. Thanks!
#7
Member
Thread Starter
Join Date: Apr 2013
Posts: 204
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
the mods are all done by me and the only wiring is for a light bar and a subwoofer so I don't think it's anything I've done. Anyways it's a 2000 xj and I believe there are 4 wires and I'm unsure of the colors. I'll check when I get home.
Trending Topics
#8
I need to know what this is
My Jeep doesn't have any codes or anything but I'm a little nervous about this electrical connection just laying out if anyone found I'd id really like to know
#9
Senior Member
Join Date: Mar 2016
Location: Oklahoma
Posts: 621
Likes: 0
Received 9 Likes
on
9 Posts
Year: 1992
Model: Cherokee
Engine: 4.0L L6 PowerTech (stock)
It looks like a connector for the alternator. Will it reach there?
Also, what year, engine, sub-model, et cetera is this?
Also, what year, engine, sub-model, et cetera is this?
Last edited by gat; 03-28-2019 at 07:24 PM.
#11
CF Veteran
Join Date: Dec 2015
Location: PA
Posts: 3,038
Likes: 0
Received 333 Likes
on
277 Posts
Year: 1997
Model: Cherokee
Engine: 4.0L
Looks like the oil pressure switch connector on my 97. Same side and location, size, color and shape. I looked around and didnt find any extra connectors hanging nearby. Looking back at the OPs opening post, it doesnt appear his oil pressure switch was connected.
