4x4 vacuum hookup
#32
Member
Join Date: Jul 2011
Location: Puerto Rico
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6

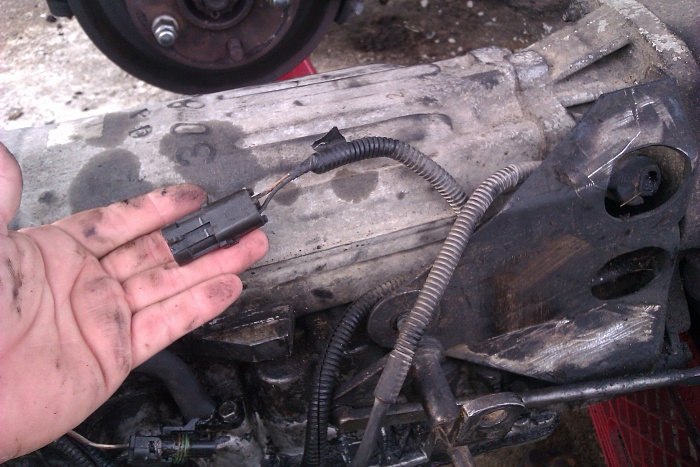

I got my red one in the y plug and I'm clueless where it goes. I know one is to the manifold and the second one? Not only that I got a plug on the tranfer case
Last edited by Nicolai; 03-02-2013 at 02:59 PM.
#33
CF Veteran
Join Date: Aug 2011
Location: Nor-Cal Coast
Posts: 10,489
Likes: 0
Received 17 Likes
on
17 Posts
Year: 90,84
Model: Cherokee
Engine: 4.0,2.5

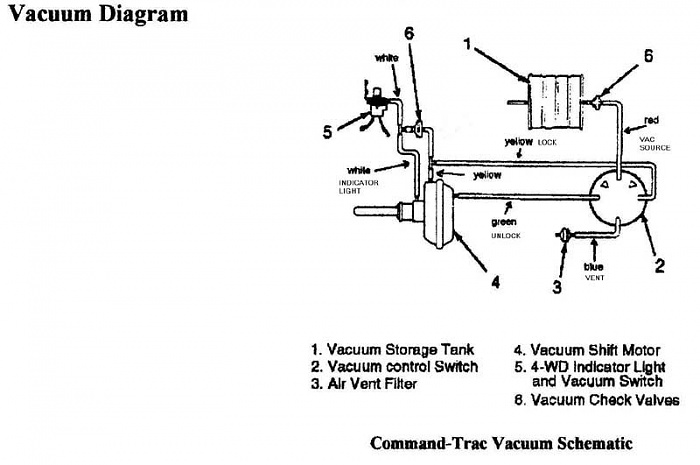

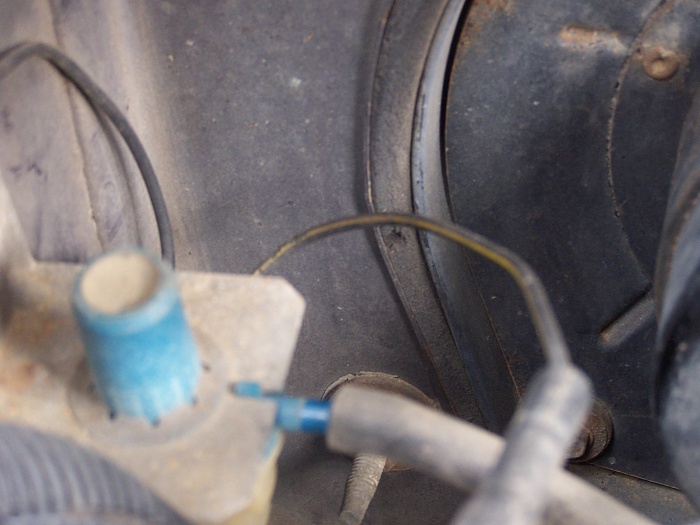

My guess. In 2wd the vacuum switsh hplds it disingauged, (no vauuum to the 4 wd light) . When 4 wd is sellected, vacuum is cut there and applied to the other port on the disco. (that moves it). THEN, AFTER, the fork has moved the sleve vacuum is directed uo to the switch (see ohoto) to turn on the 4 wd light. .
Like wiring, dont let it seem too much, just handle one thing at a tome till they are allright!
Last edited by DFlintstone; 03-02-2013 at 06:56 PM.
#34
Seasoned Member
The Y plug you're referring to IS the manifold vacuum, so you've got that connected.
The other end of the red tube plugs into the transmission plug.
Does anyone know if you can still buy that vacuum harness? I bought one years ago when I was troubleshooting my 4WD problems on my Wrangler, but I haven't been able to find them now.
#35
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Why in the world are you guys torturing yourselves trying to fix a pi$$-poor design? Do this and be done with it. Never get stranded by an engineeering debacle again.
https://www.cherokeeforum.com/f51/fr...ss-91-a-38629/
https://www.cherokeeforum.com/f51/fr...ss-91-a-38629/
#36
CF Veteran
Join Date: Nov 2011
Location: Edmonton
Posts: 2,322
Likes: 0
Received 1 Like
on
1 Post
Year: 1990
Model: Cherokee
Engine: 4.0
Why in the world are you guys torturing yourselves trying to fix a pi$$-poor design? Do this and be done with it. Never get stranded by an engineeering debacle again.
https://www.cherokeeforum.com/f51/fr...ss-91-a-38629/
https://www.cherokeeforum.com/f51/fr...ss-91-a-38629/
#37
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
agreed. i've had to go back in there a couple times since to replace a broken fork, but its still worth the money i save on Advil. i have noticed a few different fork designs too. all were from the junk yard, so i dont know which were oem or not, but the latest one i have is significanty beefier than the two previous ones with next to new wear pads too!
Hence, get rid of that crap. Only time it's gonna fail is when you need it the most...........
#39
Seasoned Member
I'm trying to restore my vehicle back to stock as much as possible. Getting the 4WD to function as it did when new is part of that.
Cruiser, you throw up a lot of great stuff, thanks for that. But these things get bad enough mileage as it is, without having a whole bunch of extra parts dragging it down any more. (Gas is over 6 bucks a gal. here)
#40
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
Ditto.
I'm trying to restore my vehicle back to stock as much as possible. Getting the 4WD to function as it did when new is part of that.
Cruiser, you throw up a lot of great stuff, thanks for that. But these things get bad enough mileage as it is, without having a whole bunch of extra parts dragging it down any more. (Gas is over 6 bucks a gal. here)
I'm trying to restore my vehicle back to stock as much as possible. Getting the 4WD to function as it did when new is part of that.
Cruiser, you throw up a lot of great stuff, thanks for that. But these things get bad enough mileage as it is, without having a whole bunch of extra parts dragging it down any more. (Gas is over 6 bucks a gal. here)
Jeeps with the NP242 transfer case didn't even have CAD. Same fuel mileage. Hmmm?
I got to see all those customers on a snow day, all pissed when their 4wd didn't work when they were counting on it. Between 5 and 10 of them every snow day. I especially remember the guy whose Jeep we had to spend about $1000 on to get it dried out because he thought he was in 4wd, but wasn't. Drove through a small creek and got stuck in the middle with his whole family.
To each his own is right. Risk versus benefit.
You want mileage? Install one of these where you can see it easily in your cab.
Here's your instructions:
http://www.ehow.com/how_8098066_driv...-gasoline.html
Last edited by cruiser54; 03-04-2013 at 09:11 PM.
#41
Seasoned Member
It doesn't change the mileage a bit. The factory eliminated it in mid 91.
Jeeps with the NP242 transfer case didn't even have CAD. Same fuel mileage. Hmmm?
I got to see all those customers on a snow day, all pissed when their 4wd didn't work when they were counting on it. Between 5 and 10 of them every snow day. I especially remember the guy whose Jeep we had to spend about $1000 on to get it dried out because he thought he was in 4wd, but wasn't. Drove through a small creek and got stuck in the middle with his whole family.
To each his own is right. Risk versus benefit.
You want mileage? Install one of these where you can see it easily in your cab.
Here's your instructions:
http://www.ehow.com/how_8098066_driv...-gasoline.html
Jeeps with the NP242 transfer case didn't even have CAD. Same fuel mileage. Hmmm?
I got to see all those customers on a snow day, all pissed when their 4wd didn't work when they were counting on it. Between 5 and 10 of them every snow day. I especially remember the guy whose Jeep we had to spend about $1000 on to get it dried out because he thought he was in 4wd, but wasn't. Drove through a small creek and got stuck in the middle with his whole family.
To each his own is right. Risk versus benefit.
You want mileage? Install one of these where you can see it easily in your cab.
Here's your instructions:
http://www.ehow.com/how_8098066_driv...-gasoline.html
Like I said, my goal is to get it back to stock as much as possible, but I can tell ya this, I'm not going to knock myself out if I can't get it to work like it's supposed to.
Like you said, it's only a half an hour and a couple of wrenches to put the whole issue to bed.
I'm gonna take you up on your recommendation. Is there any vacuum guage you've got experience with that you'd recommend?
#42
::CF Moderator::
Join Date: Aug 2011
Location: Prescott, Az
Posts: 43,875
Received 1,526 Likes
on
1,238 Posts
Year: 1990
Model: Cherokee (XJ)
Engine: 4.0
I see your point.
Like I said, my goal is to get it back to stock as much as possible, but I can tell ya this, I'm not going to knock myself out if I can't get it to work like it's supposed to.
Like you said, it's only a half an hour and a couple of wrenches to put the whole issue to bed.
I'm gonna take you up on your recommendation. Is there any vacuum guage you've got experience with that you'd recommend?
Like I said, my goal is to get it back to stock as much as possible, but I can tell ya this, I'm not going to knock myself out if I can't get it to work like it's supposed to.
Like you said, it's only a half an hour and a couple of wrenches to put the whole issue to bed.
I'm gonna take you up on your recommendation. Is there any vacuum guage you've got experience with that you'd recommend?
#43
Member
Join Date: Jul 2011
Location: Puerto Rico
Posts: 119
Likes: 0
Received 0 Likes
on
0 Posts
Year: 1988
Model: Cherokee
Engine: 4.0 L (242 CID) AMC 242 I6
The red tube is the connection between the manifold and the transmission.
The Y plug you're referring to IS the manifold vacuum, so you've got that connected.
The other end of the red tube plugs into the transmission plug.
Does anyone know if you can still buy that vacuum harness? I bought one years ago when I was troubleshooting my 4WD problems on my Wrangler, but I haven't been able to find them now.
The Y plug you're referring to IS the manifold vacuum, so you've got that connected.
The other end of the red tube plugs into the transmission plug.
Does anyone know if you can still buy that vacuum harness? I bought one years ago when I was troubleshooting my 4WD problems on my Wrangler, but I haven't been able to find them now.
