Old 01-03-2010, 04:32 PM   #1
Newbie

Join Date: Oct 2008
Posts: 4

View US84K5's Photo Album My Photos
Cherokee
Default 4x4 vacuum hookup

The 4wd went out in my brothers 89 xj, we trouble shot it and found that the vacuum line that goes to the actuator is not hooked up. We used a hand pump and put the jeep on jacks and it works when i apply vacuum to it, just don't know where to hook up the vacuum line at. If any of you could show me a picture of the inside of your engine compartment where it hooks up I would greatly appreciate it, thanks!
US84K5 is offline   Reply With Quote
Old 01-03-2010, 05:49 PM   #2
CF Veteran

winston427's Avatar

Join Date: Feb 2009
Posts: 5,851

View winston427's Photo Album My Photos
Cherokee
Default

These pics are from my 89.

Of course you should already know that there are 3 lines coming from the vacuum shift housing 1 white, 1 green, and 1 yellow.

4x4 vacuum hookup-1989-xj-074b.jpg

Those 3 lines connect to steel lines on the inside of the passenger framerail and turn up to the firewall.

4x4 vacuum hookup-1989-xj-076b.jpg

The can be seen under the overflow tank on the passenger side fender well and behind the round canister.

4x4 vacuum hookup-1989-xj-079b.jpg

The white line t's into a check valve located on the passenger side fender.

4x4 vacuum hookup-1989-xj-080b.jpg

The yellow and green line connect to a junction with an additional red and blue line that is located on the passenger side of the engine behind the oil dip stick. That is as far as I got with the pics because it is 11 degress outside and even my camera was cussing about the cold.

4x4 vacuum hookup-1989-xj-081.jpg
winston427 is offline   Reply With Quote
Old 01-03-2010, 06:45 PM   #3
Newbie

Join Date: Oct 2008
Posts: 4

View US84K5's Photo Album My Photos
Cherokee
Default

Wow thanks!
US84K5 is offline   Reply With Quote
Old 01-03-2010, 07:38 PM   #4
Seasoned Member

bsflipfrontflip's Avatar

Join Date: Aug 2009
Posts: 486

View bsflipfrontflip's Photo Album My Photos
1993 Cherokee
Default

it connects to the top of the transfer case
__________________
93 Cherokee
69 Jeepster Commando
bsflipfrontflip is offline   Reply With Quote
Old 01-03-2010, 07:41 PM   #5
Newbie

Join Date: Dec 2009
Posts: 11

View Offroadrambler's Photo Album My Photos
Cherokee
Default

anbody have any pics of vacuum routing to the transfer case
Offroadrambler is offline   Reply With Quote
Old 01-03-2010, 09:00 PM   #6
Seasoned Member

bsflipfrontflip's Avatar

Join Date: Aug 2009
Posts: 486

View bsflipfrontflip's Photo Album My Photos
1993 Cherokee
Default

I can tomorrow i actually just took one out of a 87 yj today
__________________
93 Cherokee
69 Jeepster Commando
bsflipfrontflip is offline   Reply With Quote
Old 01-03-2010, 09:07 PM   #7
Seasoned Member

bsflipfrontflip's Avatar

Join Date: Aug 2009
Posts: 486

View bsflipfrontflip's Photo Album My Photos
1993 Cherokee
Default

do you want a picture of were it hooks up to the t case or how it gets to the t case because it just kinda goes along the top if the transmission.
__________________
93 Cherokee
69 Jeepster Commando
bsflipfrontflip is offline   Reply With Quote
Old 01-05-2010, 10:17 AM   #8
Newbie

Join Date: Dec 2009
Posts: 11

View Offroadrambler's Photo Album My Photos
Cherokee
Default

if you could i need apic of the hookup into the tcase
Offroadrambler is offline   Reply With Quote
Old 01-05-2010, 06:52 PM   #9
Seasoned Member

bsflipfrontflip's Avatar

Join Date: Aug 2009
Posts: 486

View bsflipfrontflip's Photo Album My Photos
1993 Cherokee
Default

there they are
__________________
93 Cherokee
69 Jeepster Commando
bsflipfrontflip is offline   Reply With Quote
Old 01-05-2010, 09:53 PM   #10
Newbie

Join Date: Dec 2009
Posts: 11

View Offroadrambler's Photo Album My Photos
Cherokee
Default

did not work
Offroadrambler is offline   Reply With Quote
Old 01-05-2010, 10:40 PM   #11
Newbie

Join Date: Dec 2009
Location: Campbell, California
Posts: 10

View 200Kplus's Photo Album My Photos
1987 Cherokee
Default

I've got an 87 & just noticed the funny vacuum accumulator thing on the pass side, near the bumper is busted open. Can you tell me what it's for? I was thinking maybe for the cruise, which is inop anyway. I have a vacuum leak while running & would like to plug the line, if it's not critical for something else. Thanks.
__________________
87 XJ Limited
72 240Z
94 530i
84 GS1100
64 Glasspar
200Kplus is offline   Reply With Quote
Old 01-06-2010, 02:41 PM   #12
Seasoned Member

bsflipfrontflip's Avatar

Join Date: Aug 2009
Posts: 486

View bsflipfrontflip's Photo Album My Photos
1993 Cherokee
Default

sorry computer is stupid
Attached Thumbnails

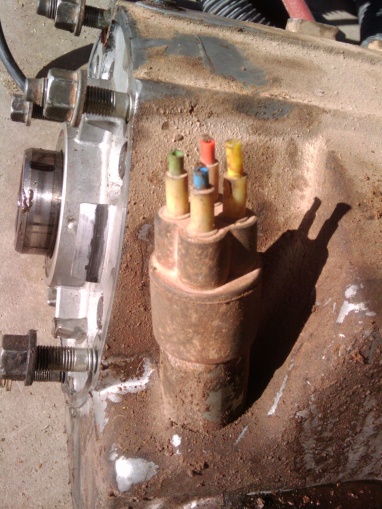

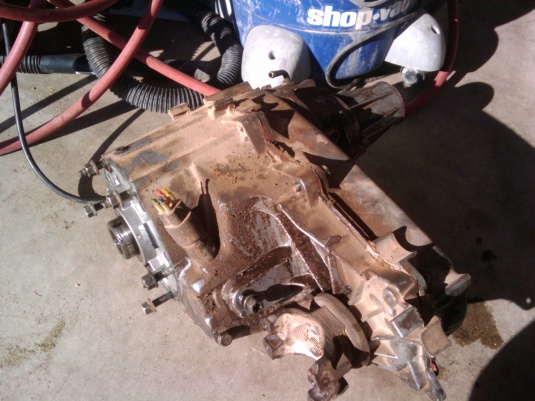

4x4 vacuum hookup-tcase1.jpg   4x4 vacuum hookup-tcase2.jpg
__________________
93 Cherokee
69 Jeepster Commando
bsflipfrontflip is offline   Reply With Quote
Old 01-06-2010, 02:41 PM   #13
Seasoned Member

bsflipfrontflip's Avatar

Join Date: Aug 2009
Posts: 486

View bsflipfrontflip's Photo Album My Photos
1993 Cherokee
Default

ok now they are there
__________________
93 Cherokee
69 Jeepster Commando
bsflipfrontflip is offline   Reply With Quote
Old 05-01-2010, 05:22 PM   #14
Newbie

Join Date: May 2010
Location: Provo, UT
Posts: 1

View 88XJinUT's Photo Album My Photos
1988 Cherokee
Question Following the lines...

I've got an 88 XJ and my 4wd/air vents went out a bit ago. I know it's the vac system but I don't know where there's a leak or if there even is one. I replaced the blower motor around the same time the 4wd died so I think I might have disconnected a vac line accidentally.

I found this post and followed the diagrams and I did notice my check valve's power connector wasn't connected, but after reconnecting it there's still no 4wd/vents. But I also see that my BLUE vac line is not connected to anything (it's got a connector, but I can't find anything to plug it into).

If someone could please continue these pictures following the lines on up to where they're supposed to go I would be very grateful. Specifically where the the blue vac line is supposed to connect.

Thanks!
88XJinUT is offline   Reply With Quote
Old 05-12-2012, 06:16 AM   #15
Newbie

Join Date: Apr 2012
Location: flowery branch ga
Posts: 5

View ugafan30542's Photo Album My Photos
1989 Cherokee
Default

yes mine is too!! its driving me crazy because even alldata will not tell me where the blue line goes!! i had a bad check valve tho because the 4wd light tuns off when under med to heavy acceleration. i think the check valve is not sealing completely on the white line.
ugafan30542 is offline   Reply With Quote
