1997 XJ Jeep Cherokee overheat issue solved

Thread Tools

Search this Thread

Old 09-30-2015, 06:15 AM
  #16
CF Veteran

BlueRidgeMark's Avatar

Join Date: May 2012
Location: Lost in the wilds of Virginia
Posts: 7,964
Received 952 Likes on 767 Posts
Year: 1998 Classic (I'll get it running soon....) and 02 Grand
Model: Cherokee (XJ)
Engine: 4.0
Default

Drop in a quarter cup of Amway SA8 laundry detergent. Drive normally for a couple of weeks. Rinse. Repeat as needed. Might take 2 or 3 rounds.

Cleans the system better than any commercial flush product, with no danger of damage to the components.


You can find dealers online.


Some say Dawn dishwashing liquid works, too. Dunno, haven't tried it.
Old 09-30-2015, 08:35 AM
  #17
CF Veteran

Bugout4x4's Avatar

Join Date: May 2015
Location: Arizona
Posts: 4,481
Likes: 0
Received 16 Likes on 12 Posts
Year: 97
Model: Cherokee
Engine: 4.0
Default Yep

Originally Posted by quneur
First, I would check where the coolant is leaking. It could be a blown radiator hose, connection or heater hose.

Second, check all freeze plugs (in back of the engine block and under the manifolds).

Third, if all checks out, get a coolant test kit. a) pressure test kit to see where its leaking and/or b) coolant combustion kit to see if cylinder head/gasket is okay.

The first thing I had to do to my 97 when I got it was pull the manifolds and change the side freeze plugs. The one in the back of the block is holding but going to probably leak soon.
Old 09-30-2015, 08:04 PM
  #18
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default update

finally was able to look at issue today regarding temp a little high and then when turned car off coolant everywhere

all hoses look ok....no leaks at hoses as i could see

radiator was full from what i could see

overflow tank empty....was full prior....seems it came out of overflow tank...no cracks in overflow tank..

possible coolant came out of radiator cap safety psi vent....but not 100% sure

started car and ran in park for 20 min and temp was about 190-200....no leaks underneath


any ideas what happened???

thanks
Old 09-30-2015, 08:04 PM
  #19
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

when i say radiator full i dont know for sure i just know when i opened cap the fluid was to top of cap
Old 09-30-2015, 08:06 PM
  #20
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

why did temp slowly go abouve 230 while expressway driving and why did coolant spew out of what appears to be overflow tank when car shut off
Old 10-02-2015, 11:55 PM
  #21
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

update....drove cherokee home from work last night about 10 miles and temp stayed below 200f

got up in am and ran car in park for 25 min temp stayed under 200f

drove car to work today and temp stayed below 200f

so far after the incident where overflow tank emptied out ...seems the temp is actually 10-20f lower....i have only driven it 2 days since then but so far thats how it is behaving...

also here is a photo of the coolant and my system has been flushed and filled 2 diff times in past month ,,,,its horrible looking

any ideas?
Attached Thumbnails 1997 XJ Jeep Cherokee overheat issue solved-imag0303.jpg
Old 10-02-2015, 11:59 PM
  #22
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

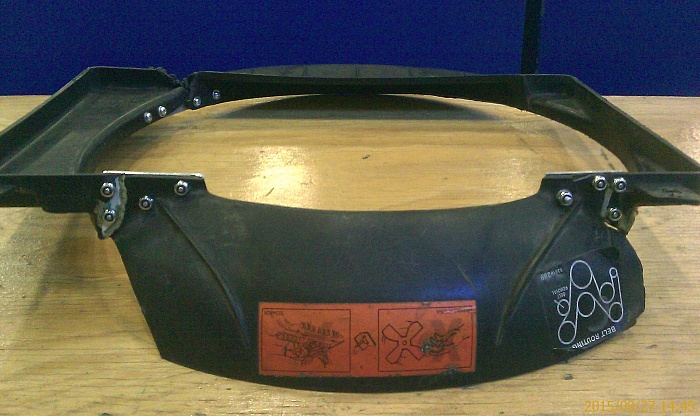

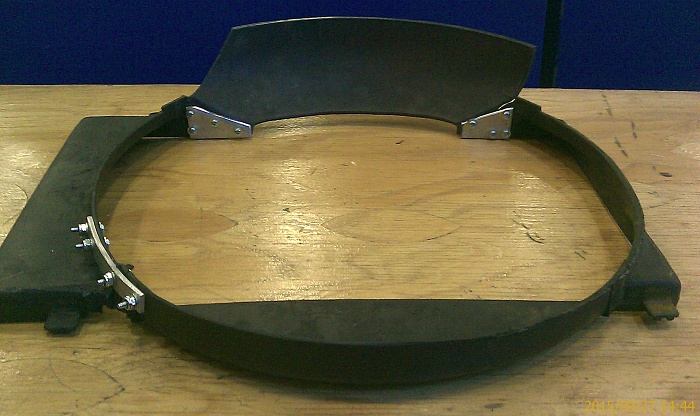

and here is a pic of me repairing my fan shroud...it broke in 3 places...and its pretty strong now..used aluminum plates....
Attached Thumbnails 1997 XJ Jeep Cherokee overheat issue solved-imag0961.jpg   1997 XJ Jeep Cherokee overheat issue solved-imag0965.jpg
The following users liked this post:
jpcallan (10-06-2022)
Old 10-03-2015, 09:09 AM
  #23
Member

Bocefus's Avatar

Join Date: Jul 2013
Posts: 137
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

Originally Posted by shelby5041
update....drove cherokee home from work last night about 10 miles and temp stayed below 200f

got up in am and ran car in park for 25 min temp stayed under 200f

drove car to work today and temp stayed below 200f

so far after the incident where overflow tank emptied out ...seems the temp is actually 10-20f lower....i have only driven it 2 days since then but so far thats how it is behaving...

also here is a photo of the coolant and my system has been flushed and filled 2 diff times in past month ,,,,its horrible looking

any ideas?
You need to find a new shop to flush your coolant. Whoever did it didn't do a good job. Make sure to flush your heater core. A lot of crud can accumulate there, which would explain your heat being warm, not hot.
Old 10-03-2015, 10:32 AM
  #24
Junior Member

travs2448's Avatar

Join Date: Mar 2014
Location: Sussex County, NJ
Posts: 57
Likes: 0
Received 0 Likes on 0 Posts
Model: Cherokee
Default

Try replacing your fan clutch. I was having problems with temp creeping up even at decent speeds with all new rad, pump, and t stat. Thats what fixed it for me. And that coolant is nasty! you should backflush your heater core too. You will be amazed at the amount of gunk that will come out. I've noticed they act like a filter almost in these cooling systems. Also you can put some cascade dishwasher detergent in your rad and drive around for a few days. it will loosen up alot of the gunk.
Old 10-04-2015, 04:48 PM
  #25
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

like i said entire cooling system has been flushed 2 diff times b 2 diff shops in past month

reverse flushed forward flushed everyway flushed

including heater core

and still looks bad
Old 10-04-2015, 04:49 PM
  #26
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

as of not past 3 days vehicle has stayed below 200f....which is good.....maybe the system had an air pocket in it causing the running a little hot then it burped real bad and now all good?
Old 10-04-2015, 04:55 PM
  #27
Seasoned Member

HappyTrails's Avatar

Join Date: Jul 2013
Location: Groveland, CA
Posts: 426
Likes: 0
Received 8 Likes on 8 Posts
Year: 1996 Two Door Wagoneer
Model: Cherokee
Engine: 4.0L
Default

Every new XJ owner should do a major service to the cooling system. Sooner than later. It's basic good sense with these vehicles. You don't want a fun trip to go bad. And have to hike out.
Old 10-04-2015, 05:11 PM
  #28
CF Veteran

Silentj's Avatar

Join Date: Nov 2011
Location: Westminster, MD
Posts: 1,221
Received 2 Likes on 1 Post
Year: 1998
Model: Cherokee
Engine: 4.0
Default

Originally Posted by shelby5041
like i said entire cooling system has been flushed 2 diff times b 2 diff shops in past month

reverse flushed forward flushed everyway flushed

including heater core

and still looks bad
I had all the same things you had, including the rusty antifreeze after 2 flushes. Turns out, my actual core was shot. When I say shot, I mean shot.

Seems like the heater core is the only thing you haven't replaced yet. It may not be that for sure, but it worth investigation. Do you have foggy windows alot? Also inspect under the heater box for signs of anti freeze.
Old 10-04-2015, 06:41 PM
  #29
CF Veteran

toasterknight's Avatar

Join Date: Jan 2015
Location: Oregon Coast
Posts: 1,508
Likes: 0
Received 4 Likes on 4 Posts
Year: 1999
Model: Cherokee
Engine: 4.0L I6
Default

Originally Posted by Silentj
I had all the same things you had, including the rusty antifreeze after 2 flushes. Turns out, my actual core was shot. When I say shot, I mean shot.

Seems like the heater core is the only thing you haven't replaced yet. It may not be that for sure, but it worth investigation. Do you have foggy windows alot? Also inspect under the heater box for signs of anti freeze.
My 99 has a leak in the core. I don't know if it was just later xj's but there is a drain into the engine compartment. It's a tube that comes out of the firewall and turns down just to the passenger side if the oil filter over the"frame rail".
Old 10-04-2015, 06:44 PM
  #30
Junior Member
Thread Starter

shelby5041's Avatar

Join Date: Mar 2014
Posts: 92
Likes: 0
Received 1 Like on 1 Post
Model: Cherokee
Default

i know heater core is shot but not replacing it too coslty for this old vehicle

i dont have much heat at all.....
