The B. Lee's Offroad 3 Link L/A Upgrade
After a good bit of testing, we are finally ready to offer this kit. Tested and abused by us personally!

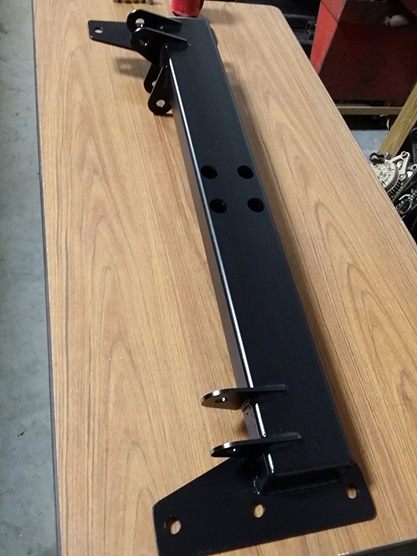

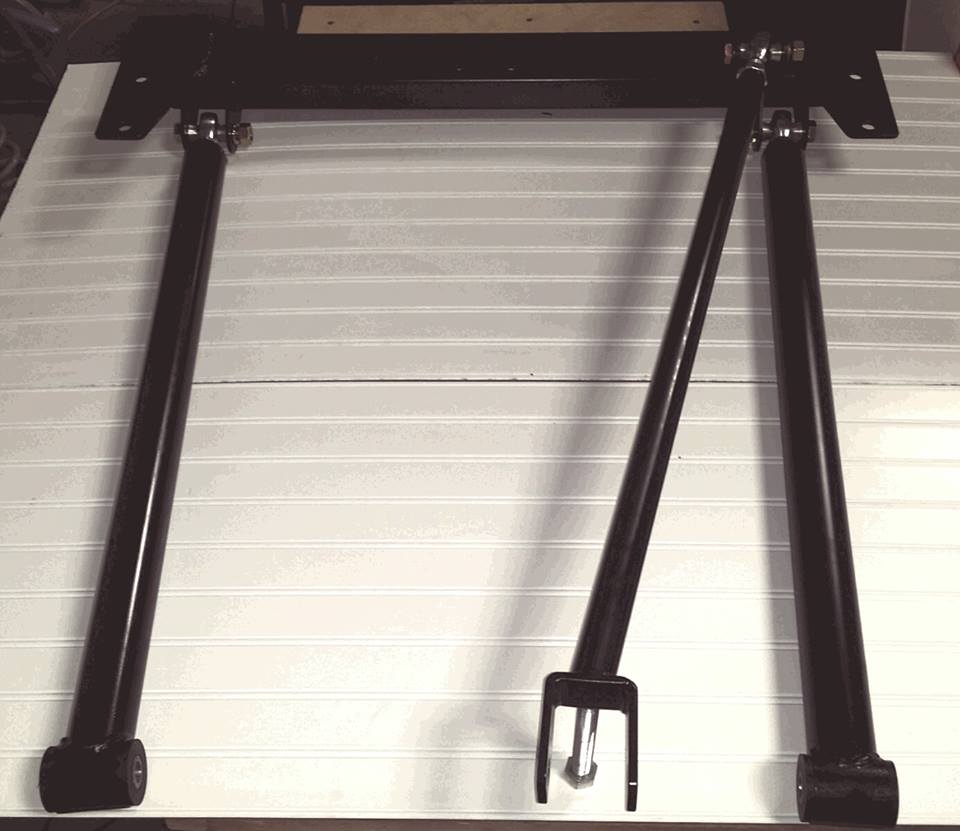

The kit includes a complete new cross member, 2 adjustable lower arms, 1 upper adjustable arm (to be ran on the drivers side), and a Currie Johnny Joint to replace your stock upper driver side axle bushing.
The Lower Links are made of 2" .219 DOM with poly bushings on the axle end, and 7/8" Heat treated chromoly heim joints on the x-member end.
The upper link is 1.25" .120 DOM with a 3/4" chromoly heim joint on the x-member end. Again, included is also a replacement Currie JJ to go in place of the stock driver axle bushing.
The kit is $750 for local pickup, and $800 shipped to the lower 48.
We have had quite a few people ask about these and they are finally ready to go. We have sold/installed a few already here locally, and have had nothing but positive feedback.
For orders:
http://bleeoffroad.com/index.php/sus...ng-arm-upgrade

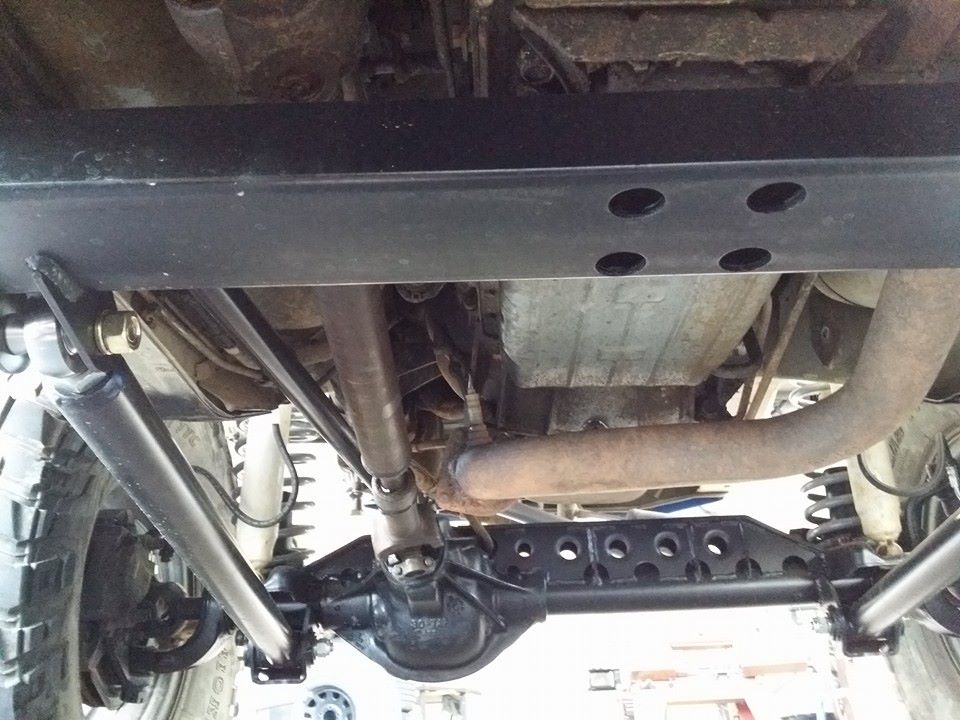

And finally, old school shot of the first one we ever installed, in action:
The kit includes a complete new cross member, 2 adjustable lower arms, 1 upper adjustable arm (to be ran on the drivers side), and a Currie Johnny Joint to replace your stock upper driver side axle bushing.
The Lower Links are made of 2" .219 DOM with poly bushings on the axle end, and 7/8" Heat treated chromoly heim joints on the x-member end.
The upper link is 1.25" .120 DOM with a 3/4" chromoly heim joint on the x-member end. Again, included is also a replacement Currie JJ to go in place of the stock driver axle bushing.
The kit is $750 for local pickup, and $800 shipped to the lower 48.
We have had quite a few people ask about these and they are finally ready to go. We have sold/installed a few already here locally, and have had nothing but positive feedback.
For orders:
http://bleeoffroad.com/index.php/sus...ng-arm-upgrade
And finally, old school shot of the first one we ever installed, in action:
Trending Topics
10-13-2014, 11:50 AM
#8
Former Sponsor
Thread Starter
Join Date: Apr 2014
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
We have used it on as low as 4 inches and had 0 clearance issues. With the right amount of bump stops 3" should be just fine.
We have yet to get our hands on an MJ...but we have a customer who is supposed to be bringing his by for some test fitting. As long as its an AW4 or an AX15 it should work just fine. Will keep you posted on this.
10-14-2014, 12:25 PM
#12
Former Sponsor
Thread Starter
Join Date: Apr 2014
Posts: 295
Likes: 0
Received 0 Likes
on
0 Posts
Model: Cherokee
Paypal offers a credit option which allows you to finance purchases made via our website over a certain amount of time. It is a good way to get your 3 link with little up front cost and build credit at the same time. This is obviously pending you get a credit approval from them.
The option is available when you go to checkout on our site.
