Any 3-6" xj,zj,tj, need a beefy new track bar? Ive got 3! TEST DUMMY DISCOUNT!

ironmanandy · 11-18-2009, 10:55 PM

Hey Guys, Im introducing a New Direct bolt on adjustable track bar for XJ, ZJ, and TJ model jeeps! I WANTED TO OFFER MY FIRST 3 TO CF GUYS FIRST TO TRY OUT AT A DISCOUNT!
It is a direct bolt on track bar that adjusts on the jeep! just bolt it on, Dial it in. lock it down and go!
FIRST 3 FOLKS TO CONTACT ME VIA E-MAIL AT ANDY@IRONMAN4X4FAB.COM GETS ONE FOR 150.00 SHIPPED! ALL I ASK IS SOME REAL FEEDBACK ON THE INSTALL AND ON THE ROAD!

Here are the specs.
-THIS BAR IS BEEF! WEIGHING 16LBS ALL SOLID!
-MAIN BAR MACHINED FROM 1.25 COLD ROLLED STEEL
-THREADED BODY MACHINED FROM 1.5 COLD ROLLED STEEL
-ADJUSTER IS MACHINED FROM SOLID! NO WIMPY SHEET METAL WRAP!
-HARD PRESSED POLY ON AXLE SIDE WITH GREASE FITTINGS
-HUGE M22X1.5L THREADING ROD END THAT WONT WEAR OUT LIKE HEIMS
-ROD END IS THE SAME PART AS THE FACTORY ZJ TIE ROD.
-POWDER COATED BLACK, AND FULLY ASSEMBLED READY TO INSTALL.
-FITS LIFTS FROM 3"-6"
-SHAPED TO ALLOW BOTH WHEELS TO DROP DURING ARTICULATION
-WITH LEFT AND RIGHT HAD THREADING, ADJUSTMENT IS MADE WHEN INSTALLED.

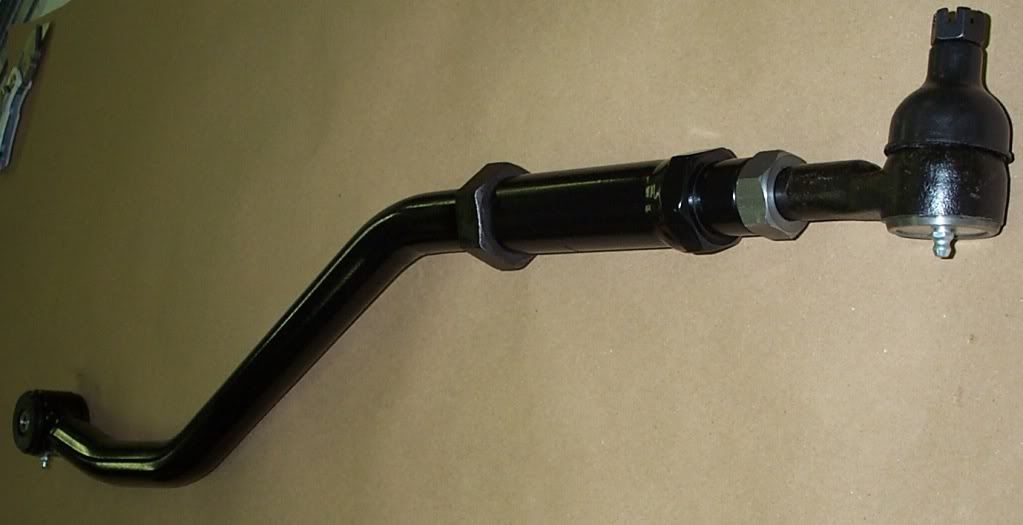

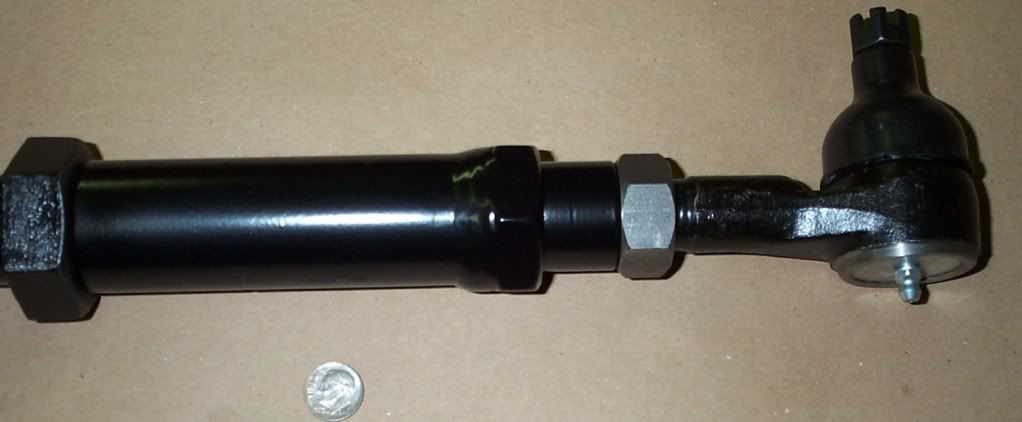

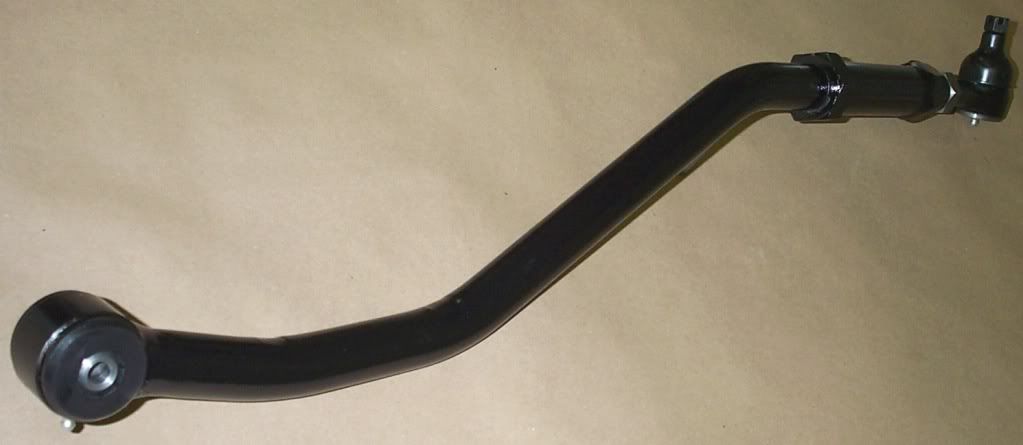

HERE ARE THE PICS:

THANKS FOR LOOKING AND KEEP ON JEEPIN!

XJ Stryker · 11-19-2009, 12:51 PM

Would love to try one out for ya but have to wait till the new year.

You could PM XJ Tess (my Wife) and tell her this is what I want for X-mas.

COSXJFAN · 11-20-2009, 08:31 AM

Out of curiosity, what is that TRE sourced from. Is it stronger than stock?? Thanks much!!

krkx93 · 11-21-2009, 12:02 AM

got three yet? pm me

ironmanandy · 11-21-2009, 02:34 PM

The rod end is the same part as used in the heavier duty ZJ grand cherokee tie rod. It uses an m22x1.5L thread that is about the same as 7/8 18 tpi. It is actually a very strong rod end and it bolts directly in. The design of the track bar also allows you to adjust out the right hand side a few turns and then bolt it in so you can keep more thread from the rod end engaged.
A-

okcjeeper · 11-21-2009, 04:47 PM

I really to like this concept. To bad I have already reamed my axle end mount..

Jeep Guy · 11-21-2009, 07:16 PM

Quote:

Originally Posted by ironmanandy

The rod end is the same part as used in the heavier duty ZJ grand cherokee tie rod. It uses an m22x1.5L thread that is about the same as 7/8 18 tpi. It is actually a very strong rod end and it bolts directly in. The design of the track bar also allows you to adjust out the right hand side a few turns and then bolt it in so you can keep more thread from the rod end engaged.
A-

I would love this too just don't have the cash right now. Hopefully you will be selling these to the general public after the new year. great design man.

ironmanandy · 11-22-2009, 12:18 PM

Well I can build about anything so I could make one for a reamed out mount with a double shear bracket
A-

Troth · 12-02-2009, 07:47 PM

im in! is it still happening? how much?

Metmknice · 12-16-2009, 01:55 AM

Still at "ginea pig" price?

ironmanandy · 12-20-2009, 07:10 PM

hit me up at andy@ironman4x4fab.com
I may be able to be close
Andy
